TOP-LEVEL Ipswich Health Plaza car park

15 bell street
Ipswich qld, 4305

Date: November 2015

Project: Top Level Ipswich Health Plaza Car Park

Builder: Waterproofing Works

Application: Trafficable Membrane System

Waterproofing-Works-Ipswich-Carpark-Stage-#1-1500sqm-2nd-UV-Stable-Trafficable-Coat-EDIT

Remedial Work on a Public Car Park

Ipswich Health Plaza is a community health centre

located on Bell St in central Ipswich.

The rooftop parking deck accommodates approximately 200 car spaces. The area underwent remedial work in early January 2016 due to water ingress into the lower parking deck areas.

The existing coating which had failed over the years was replaced with a trafficable membrane system from Soprema.

Waterproofing-Works-Ipswich-Carpark-Stage-#1-1500sqm-1st-Trafficable-Coat-&--Excess-Sand-Removal-EDIT

Products Specified

CRACK REPAIRS

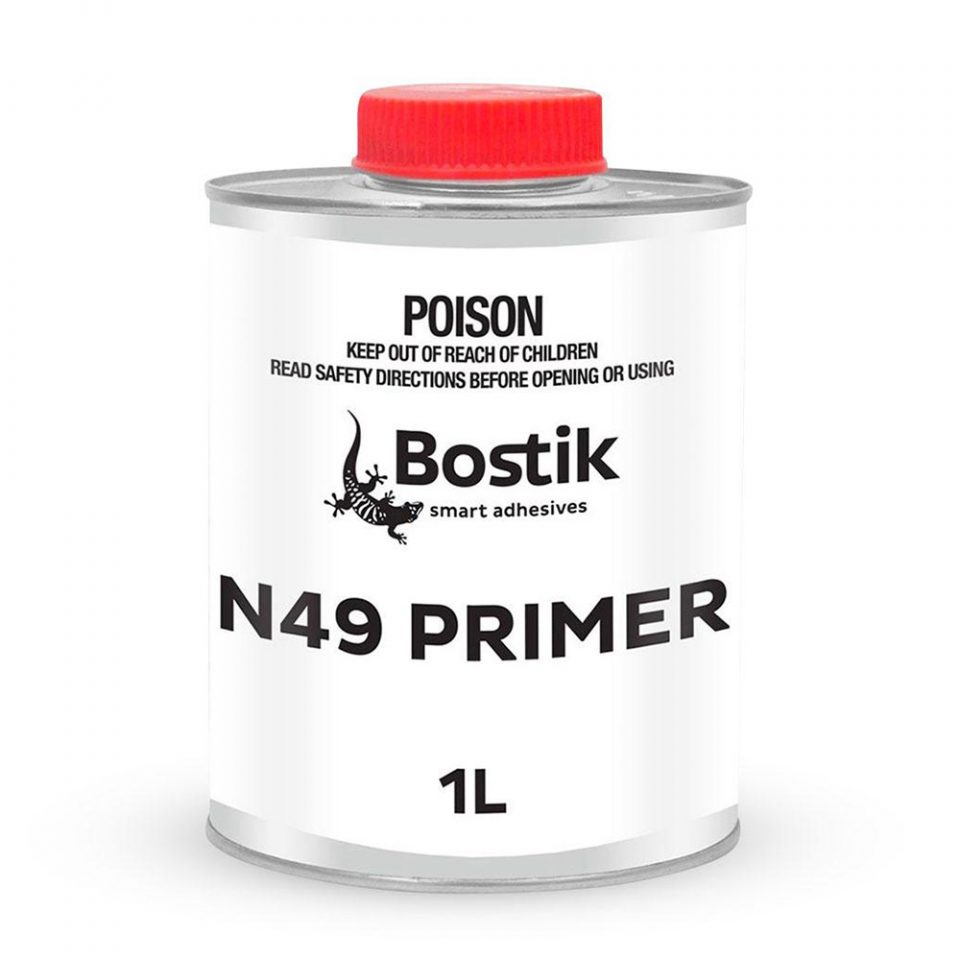

Primer: Bostik N49 Primer, a porous substrate primer for polyurethane sealants.

Sealant: Bostik Seal N Flex FC, one part fast curing polyurethane sealant.

CARPARK PARKING DECK

Primer: SOPREMA Alsan Trafik HP 510, one-component polyurethane-based primer.

Membrane: SOPREMA Alsan Trafik HP 520, single-component polyurethane membrane.

Wear Coat: SOPREMA Alsan Trafik HP 530, single
component polyurethane wear coat incorporated with non-slip aggregates.

Wear Coat: SOPREMA Alsan Trafik HP 530, single component polyurethane wear coat.

Finish Coat: SOPREMA Alsan Trafik HP 540, single component polyurethane finish coat with colour pack.

CONCRETE PARAPETS WALLS

Primer: Globalcote Primecote Sealer Primer, a water-based acrylic primer.

Façade Coat: Globalcote Elastacote Mid Lustre, one-part water-based acrylic membrane/coating system.

Download PDF Case Study

Waterproofing-Works-Ipswich-Carpark-Stage-#1-1500sqm-1st-Trafficable-Coat-&--Excess-Sand-Removal-EDIT Waterproofing-Works-Ipswich-Carpark-Stage-#1-1500sqm-2nd-UV-Stable-Trafficable-Coat-EDIT Feature-Image-Health-Plaza-1

Products used

  • Bostik N49 Primer
  • Bostik Seal N Flex FC
  • SOPREMA Alsan Trafik HP 510
  • SOPREMA Alsan Trafik HP
  • 520 SOPREMA Alsan Trafik HP
  • 530 SOPREMA Alsan Trafik HP
  • 540 Globalcote Primecote Sealer Primer
  • Globalcote Elastacote Mid Lustre
