WP240 Waterproofing Wet Areas – Vinyl Floor & Tiled Walls

Preparation:

  1. All surfaces to be waterproofed must be firm, clean, dry, sound and smooth. All grease, oil, wax, curing compounds, loose material, paint and any other contaminants must be removed, masonry surfaces must be pointed flush and surface defects repaired. New concrete must be cured for a minimum of 28 days.
  2. External corners to be waterproofed must be bevelled to ensure a smooth transition of membrane from vertical to horizontal surfaces.

Installation:

  1. Waterproofing installation shall be in accordance with the applicable provisions of the National Construction Code. Tile installation shall be in accordance with AS 3958 Installation of Ceramic and Stone Tiles.
    Vinyl installation shall be in accordance with AS 1884 Floor Coverings – Resilient Sheet and Tiles – Installation Practices.
  2. Install TPA Screed to achieve appropriate falls to waste. Where a bonded screed is required, apply a bond coat using TPA 401M or TPA Lite. Install TPA Rapid Screed for an engineered or rapid set screed, using a bond coat of TPA Rapid for bonded screeds.

    TPA Screed is a pre-blended screed mixture for the installation of cementitious screeds and tile beds, suitable for internal and external floor applications.

    TPA Rapid Screed is a pre-blended, rapid set, engineered screed mixture for the installation of cementitious screeds and tile beds, suitable for internal and external floor applications.

  3. Install a vinyl flange to all waste pipes ensuring that flanges are recessed into the substrate.
  4. Apply WPA 160 primer to all non-porous surfaces such as vinyl flange.

    WPA 160 is a specialised solvent-free primer designed for enhancing the adhesion of subsequent membranes, adhesives, toppings and decorative finishes over non-porous substrates.

  5. Apply WPA 360 or WPA 460 primer to the substrate to be waterproofed.

    WPA 360 is a water-based, low-solids, fast-drying primer.

    WPA 460 is a two-part, water-based epoxy primer, used to seal concrete and masonry surfaces.

  6. Apply WPA 400, WPA 500 or WPA Rapid membrane in a minimum of two coats to achieve the required dry film thickness. Ensure that the previous coat has completely dried before applying the subsequent coat(s). NOTE: All penetrations must be waterproofed.

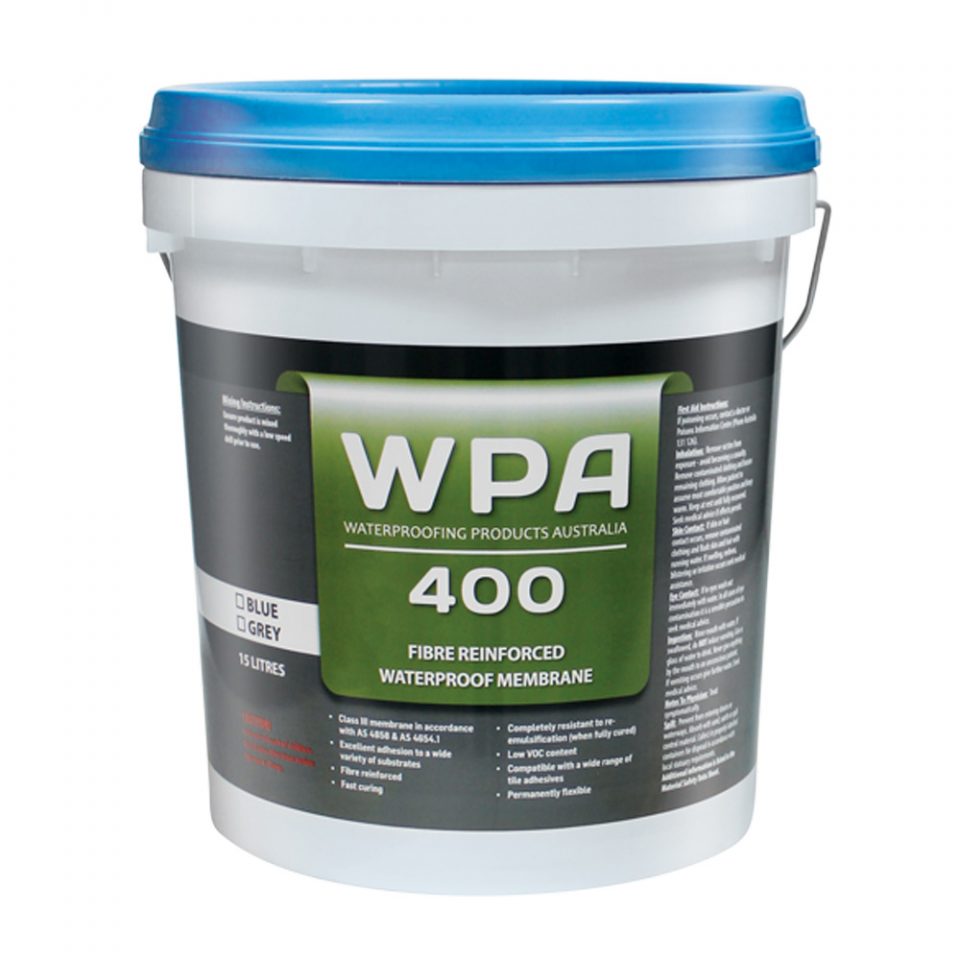

    WPA 400 is an elastomeric, fibre-reinforced waterproofing membrane based on high-performance polymer technology designed for use under tile finishes.

    WPA 500 is a waterborne, fibre-reinforced, flexible waterproof membrane designed for use under tile finishes.

    WPA Rapid is a fast-curing, waterborne flexible waterproof membrane designed for use under tile finishes.

  7. All transitions must be detailed utilising WPA Elastoband.

    WPA Elastoband is an innovative detailing system designed for waterproofing and sealing all types of joints, junctions and transitions subjected to movement.

  8. Allow the waterproofing membrane to fully cure before applying RLA F23 Feather skim coat to vinyl areas.

    RLA F23 Feather is a rapid-drying cement-based skim and smoothing compound providing a smooth finish and even surface to a variety of internal substrates prior to the application of floor coverings.

  9. Install floor vinyl using RLA RL1000 adhesive.

    RLA RL1000 is a single-part, VOC-compliant isocyanate-free water resistant resilient flooring adhesive.

  10.  Install wall tiles using TPA 401M, TPA 501R or TPA Lite tile adhesive.

    TPA 401M is a white, flexible, powdered adhesive for wall and floor applications.

    TPA 501R is a cost-effective, high-coverage, flexible, powdered adhesive for wall and floor applications.

    TPA Lite is a premium grade, white, fibre-reinforced, flexible cement-based tile adhesive, based on a lightweight formulation.

  11.  Grout tiles using TPA Tru Colour Grout or an approved alternative.

    TPA Tru Colour Grout is a high-performance stain & efflorescence resistant grout. It is designed for use with most types of Ceramic, Mosaic, Natural Stone and Glass Tiles.

  12.  Install backing rod to all perimeter and intermediate movement joints and seal with TPA Tru Colour Sanitary Silicone or approved alternative.

    TPA Tru Colour Sanitary Silicone is a mould-resistant, non-diluted, high-performance, UV-resistant, neutral cure silicone sealant.
