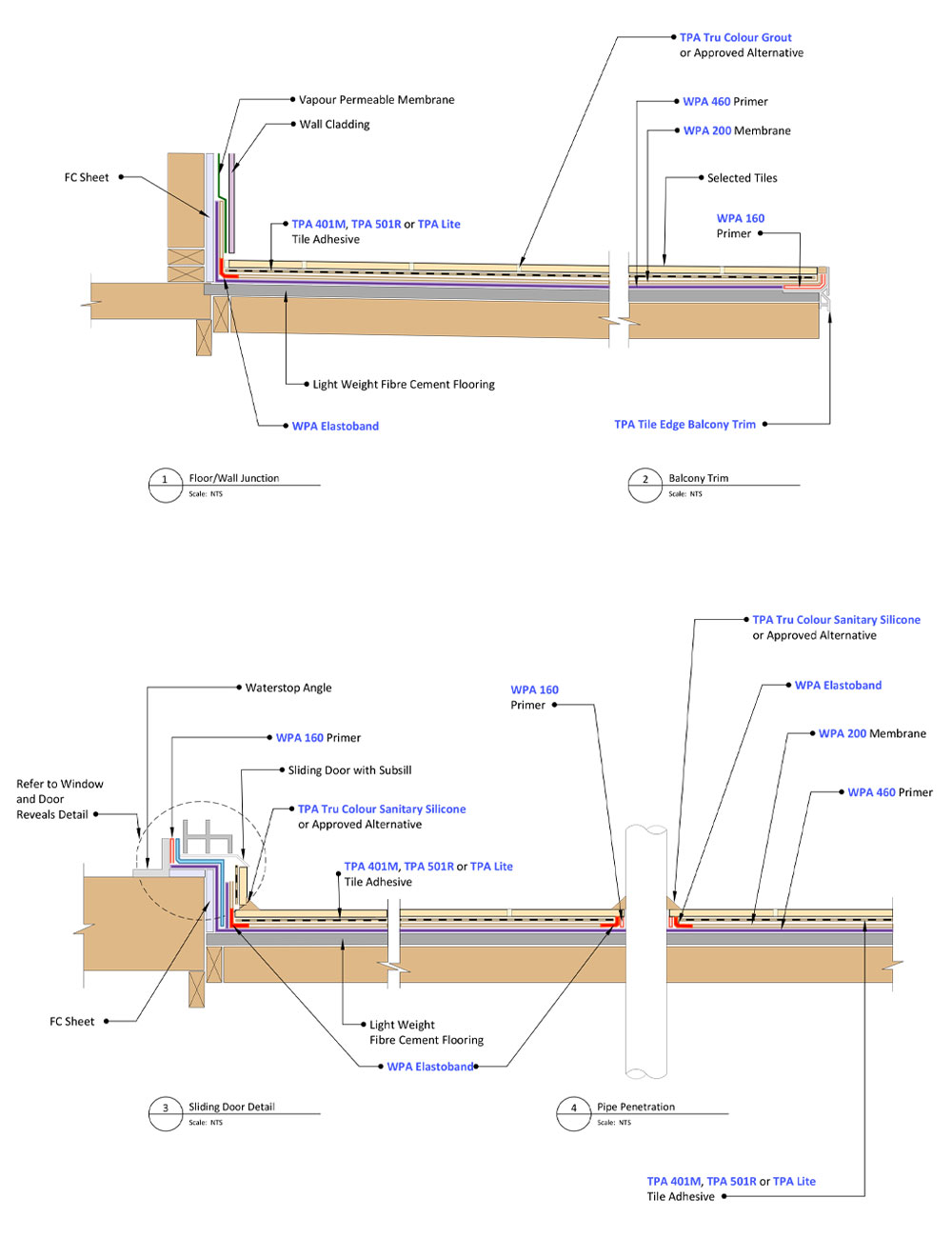

WP321 Waterproofing Light Weight Fiber Cement Flooring

1. All surfaces to be waterproofed must be firm, clean, dry, sound and smooth. All grease, oil, wax, curing compounds, loose material, paint and any other contaminants must be removed, masonry surfaces must be pointed flush and surface defects repaired.
2. External corners to be waterproofed must be bevelled to ensure a smooth transition of membrane from vertical to horizontal surfaces.

Installation:

1. Waterproofing installation shall be in accordance with AS 4654.2 Waterproofing Membranes for External Above-Ground Use. Tile installation shall be in accordance with AS 3958.1 Ceramic Tiles – Guide to the Installation of Ceramic Tiles.
2. Recess the outside edge of the balcony to accommodate TPA Tile Edge Balcony Trim if required. Fix balcony trim using WPA MS or WPA SPUR and/or Class 3 galvanized screws.

   WPA MS is a single-component, moisture-cured silane-modified hybrid sealant.

   WPA SPUR is a high-quality, professional, universal, low-modulus sealant based on hybrid technology.

3. Prime PVC and all other non-porous substrates using WPA 160 primer.

   WPA 160 is a specialised solvent-free primer designed for enhancing the adhesion of subsequent membranes, adhesives, toppings and decorative finishes over non-porous substrates.

4. Apply WPA 460 primer to the substrate being waterproofed.

   WPA 460 is a two-part, water-based epoxy primer, used to seal concrete and masonry surfaces.

5. Apply WPA 200 membrane in a minimum of two coats to achieve the required dry film thickness. Ensure that the previous coat has completely dried before applying the subsequent coat(s). NOTE: All penetrations must be waterproofed.


   WPA 200 is a flexible, two-part, rapid-drying, cementitious waterproofing membrane system, specifically designed for use under tile, stone and exposed applications.

6. All transitions must be detailed utilising WPA Elastoband.

   WPA Elastoband is an innovative detailing system designed for waterproofing and sealing all types of joints, junctions and transitions subjected to movement.

7. Install tiles using TPA 401M, TPA 501R or TPA Lite tile adhesive.

   TPA 401M is a white, flexible, powdered adhesive for wall and floor applications.

   TPA 501R is a cost-effective, high-coverage, flexible, powdered adhesive for wall and floor applications.

   TPA Lite is a premium grade, white, fibre-reinforced, flexible cement-based tile adhesive, based on a lightweight formulation.

8. Grout tiles using TPA Tru Colour Grout or an approved alternative.

   TPA Tru Colour Grout is a high-performance stain & efflorescence resistant grout. It is designed for use with most types of Ceramic, Mosaic, Natural Stone and Glass Tiles.

9. Install backing rod to all perimeter and intermediate movement joints and seal with TPA Tru Colour Sanitary Silicone or approved alternative.

   TPA Tru Colour Sanitary Silicone is a mould-resistant, non-diluted, high-performance, UV-resistant, neutral cure silicone sealant.
